FreeCore Function #7:
Gray Code Counter
Module name: gray
Current release: version 1.0, April 24, 1997
Contributed by: Woody Johnson woodyj@dacmail.net

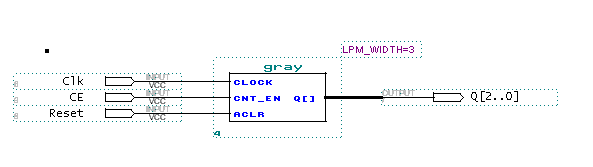

Shown below is a sample schematic using the gray module with a WIDTH of 3:



...and this is how the simulator output of the above schematic looks like:



Module Description

The gray module implements a parameterized width gray code sequence counter. Gray code count sequences are distinguished by the fact that only one bit changes as the counter goes through it's sequence. This is advantagous when using the output of the count sequence asynchronously. Since only one bit at a time will change, the outputs can be decoded without introducing logic hazards.

Here are some logic cell (LC) usage and registered frequency (F) for various implementations of gray:

LC/F NORMAL FAST
MAX7K-15  9/77 MHz 9/77 MHz
FLEX8K-4  15/53 MHz 10/73 MHz
FLEX10K-4  15/84 MHz 16/88 MHz
LC/F for gray with LPM_WIDTH = 8
LC/F NORMAL FAST
MAX7K-15  17/77 MHz 17/77 MHz
FLEX8K-4  31/29 MHz 18/47 MHz
FLEX10K-4  31/38 MHz 32/57 MHz
LC/F for gray with LPM_WIDTH = 16

The gray module was based on techniques discussed in Altera Application Brief 135 available from the Altera web site: http://www.altera.com/document/ab/ab135_01.pdf



PARAMETERS
LPM_WIDTH  Number of bits in counter output.
INPUT PORTS
clock  System clock input.
cnt_en  The counter counts on the positive edge of clock whenever cnt_en is logic high.
aclr  Asynchronous clear.  Resets count sequence to zero when high.
OUTPUT PORTS
q[]  Output gray count value of LPM_WIDTH bits.
